Pr-indicator - OS.35-01
The Mega Tester V4 software communicates with the micrometer via a wireless port and automatically uses the measurements to plot the change in length of the piezo actuator as the voltage changes.
Technical data:
– Mathematical error compensation
– Temperature compensation of parts made of aluminium, iron, copper, glass in the range 0-50°C (internal sensor)
– Extended functions (TOL, MAX/MIN, RANGE, DATA, ZERO, MEMORY up to 100 values)
– 100% metrological control in an accredited laboratory according to ISO17025 (Ilac MRA)
– Integrated microcomputer with 1.5″ colour touch screen display
– Built-in low-power wireless data transfer to Windows, Android, iOS devices
– USB connection to Windows PC in keyboard mode or normal mode (cable included)
– SPC software for Windows, Android, iOS devices FREE of charge

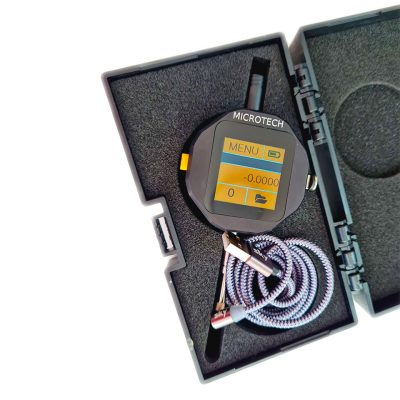

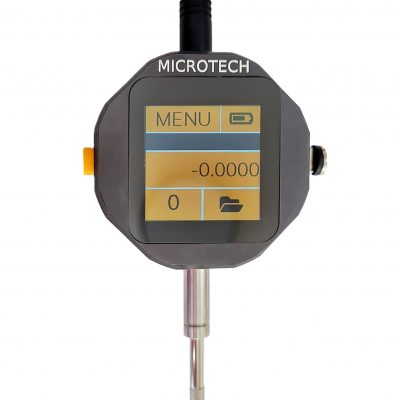

Sub-micron computer indicator
Digital micrometer IP-65 0-25mm Friction- OS.36-01
Friction micrometer with digital readout device
type MKC is designed to measure external dimensions.
It is used in mechanical engineering and other industries.
Type of climatic execution UHL 4.2 according to GOST 15150-69.
An example of the designation of a smooth micrometer with a digital readout
friction device with a measuring range from 0 to 25 mm with a counting discreteness of 0.001 mm, dust and moisture protection IP54, accuracy class 1 when
ordering.
Digital micrometer MKC precision IP65
MIСROTECH Computerized OS.
MIСROTECH Computerized and Tablet devices has different connection modes:
Long range WIRELESS data transfer to MDS app for Windows, Android, iOS
WIRELESS HID data transfer to Windows, Android, iOS, MacOS, Linux, etc. (like keyboard)
USB HID data transfer to Windows, Android, iOS, MacOS, Linux, etc. (like keyboard)
WIRELESS HUB connection mode with other MICROTECH device connection
Firmware update
