Give your system a second life with our modernisation solutions. Seize the opportunity to increase the performance of your systems. OPENSYSTEM WEST offers several options for extending the functionality of your test bench. These devices are designed to retrofit and modernise existing (old) test benches from any manufacturer or to build a new simulator yourself.
Solutions for modernization of Test Benches
Possible upgrade options
OS.39-087

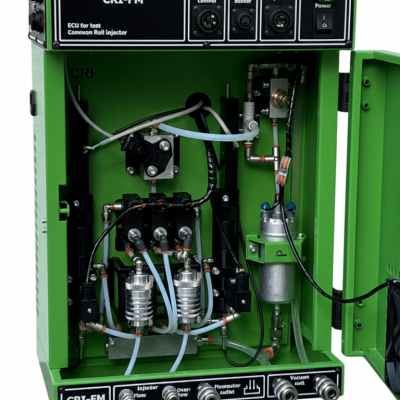

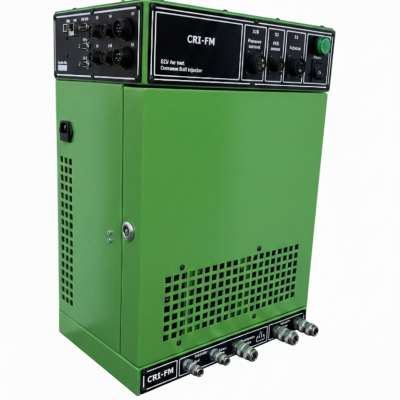

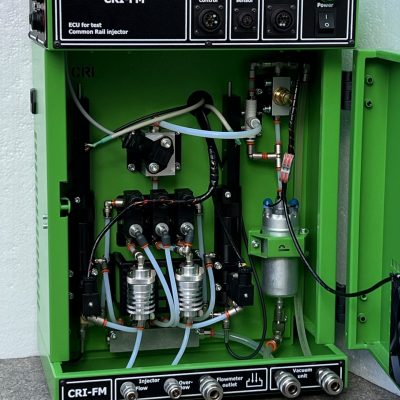

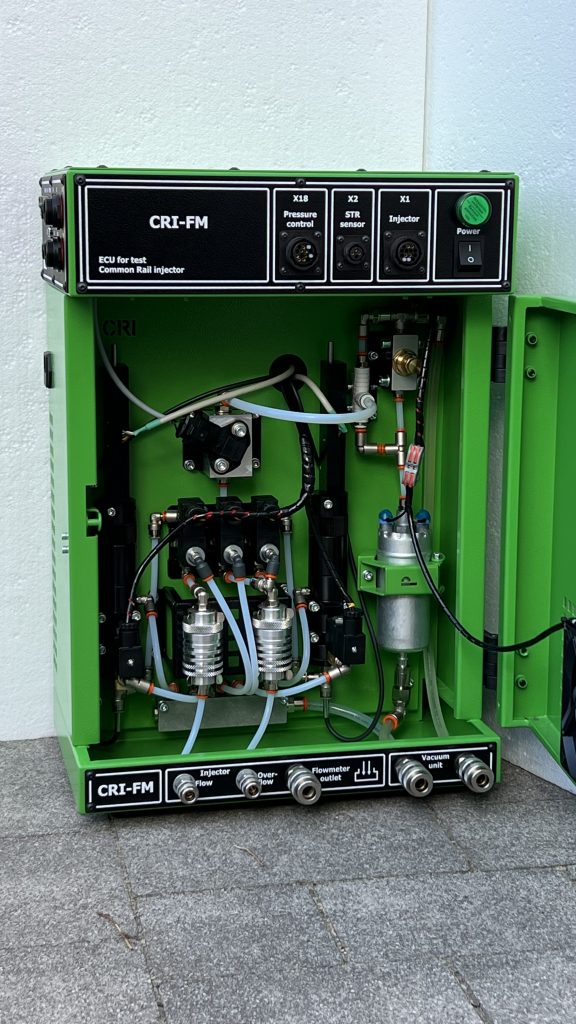

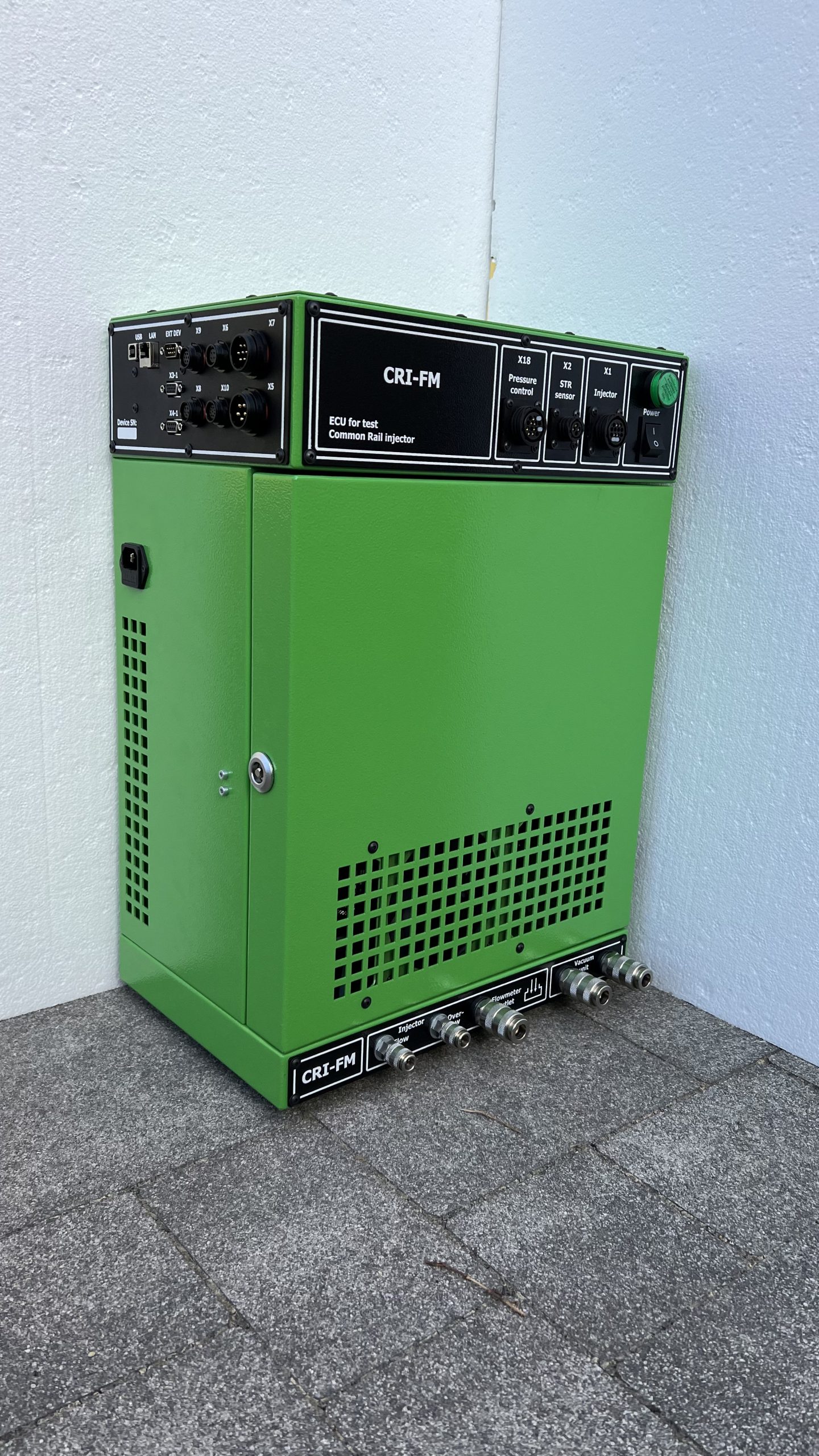

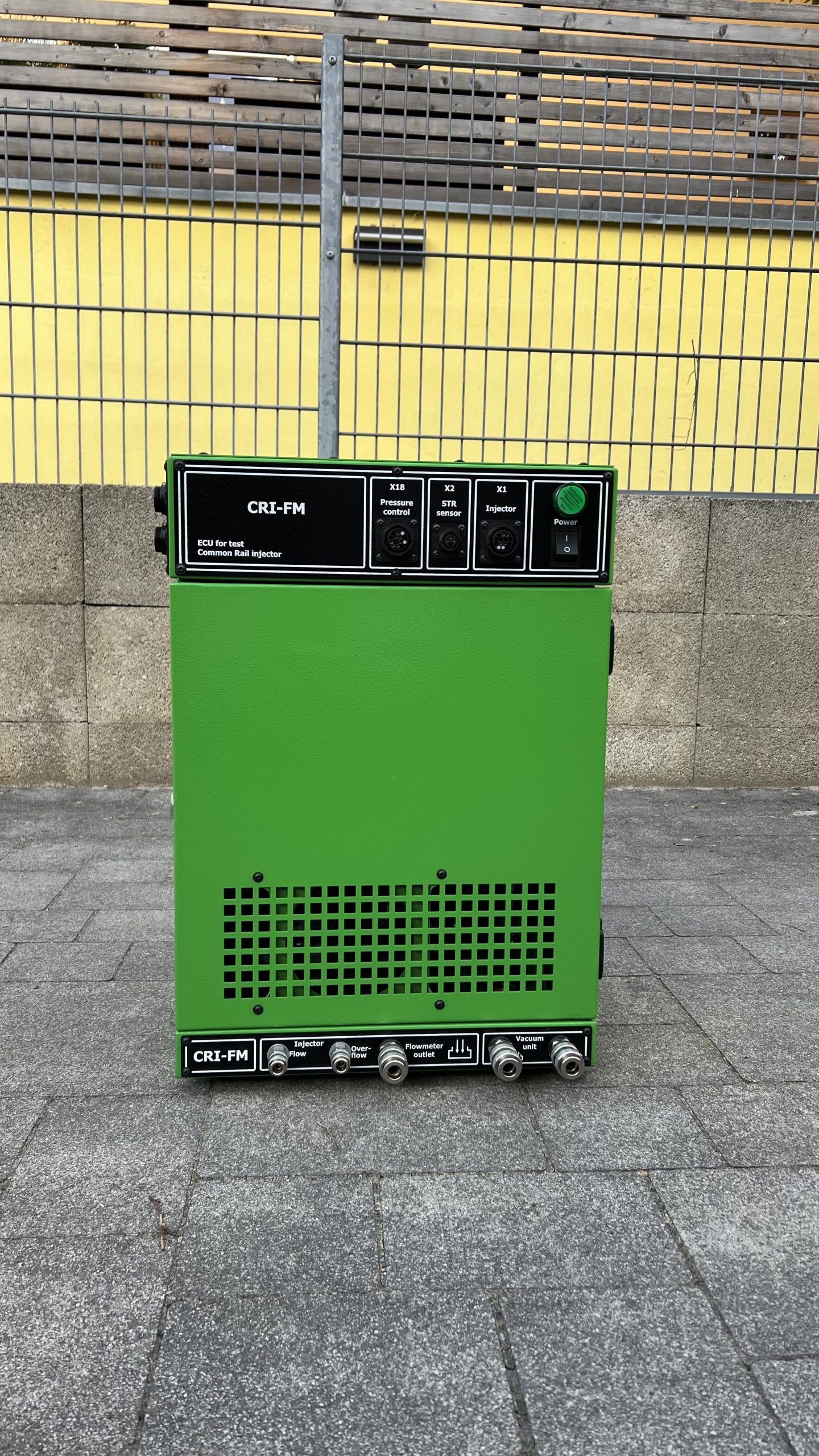

CRI-FM — is a combination device, which includes an electronic unit for generating the injector control pulse and a high-precision electronic system for measuring the flow of test fluid through one forward and one backflow channel.
Setting the parameters of the control pulse, visualisation of the measurement results, communication with pressure- and temperature-sensors, etc., selection or creation of test plans and generation of correction codes are carried out via our software ARM Diesel.
This device is used to test and code a single Common Rail injector.

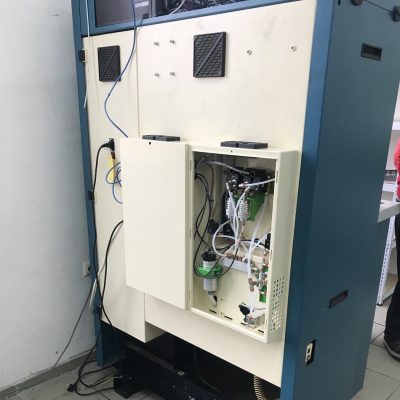

OS.39-085 Jet4-E1A-Hart for Common Rail Injectors 1 channel (for upgrading Hartridge Test Bench). Electronic measuring single-channel system for testing Common Rail injectors Bosch, Denso, Delphi, Siemens with coding function. In a specially designed housing for easy installation on Hartridge test benches. After installation, it is possible to use both the original and retrofitted system. The Mega Tester V4 is included in the scope of delivery!

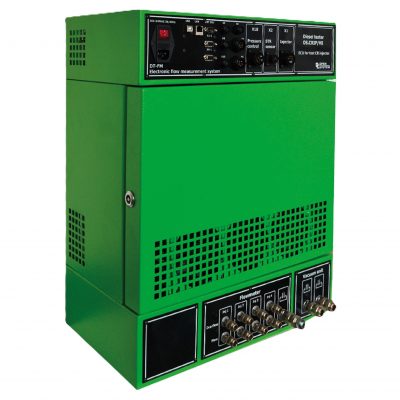

OS.39-086 OS.CRIP / V8 for Common Rail Injectors 4 channel. Electronic measuring 4-channel system for testing Common Rail injectors Bosch, Denso, Delphi, Siemens with coding function. Enables simultaneous testing of up to 4 injectors.
OS.39-087 CRI-FM for Common Rail Injectors 1 channel. Electronic measuring single-channel system for testing Common Rail injectors Bosch, Denso, Delphi, Siemens with coding function.
OS.39-100 UIS-FM for Unit Injectors.
Electronic measuring single-channel system for testing of unit injectors and pump-sections. FC control via universal analog 0-10V, Mitsubishi, Delta FC via digital interface, heating / cooling control, set of cables, ARM Diesel Software PD.

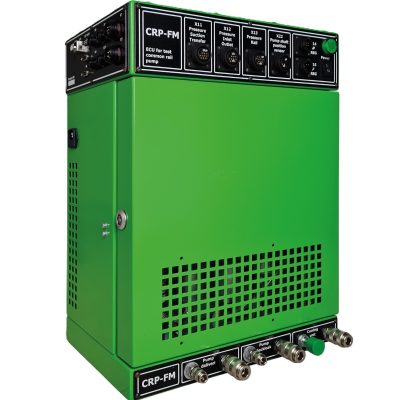

OS.39-101 CRP-FM for Common Rail pumps. Electronic measuring system for testing of Common Rail pumps Bosch, Denso, Delphi, Siemens. FC control via universal analog 0-10V, Mitsubishi, Delta FC via digital interface, heating / cooling control, set of cables, ARM Diesel Software PD.
Upgrade of the CR-JETs manufactured in 2011-2017.

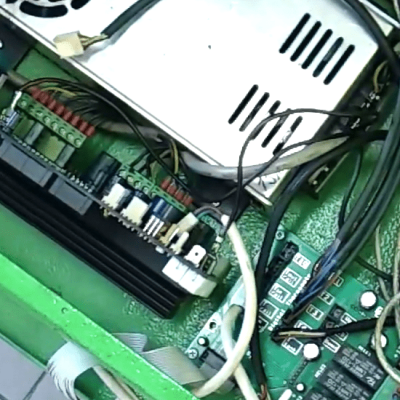

CR-Jet-OS.15-14. Controller upgrade of the ‘CR-JET’ test bench (4 injectors) Bosch, Denso, Delphi, Siemens VDO systems + ARM Diesel software.

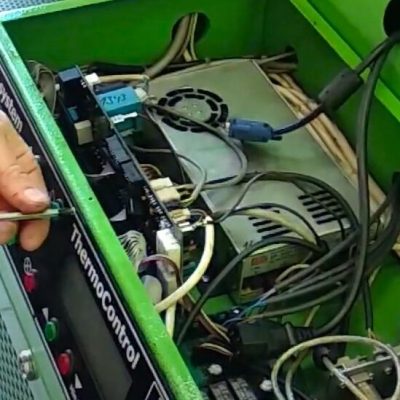

Installing a new CR controller tester and a communication controller.

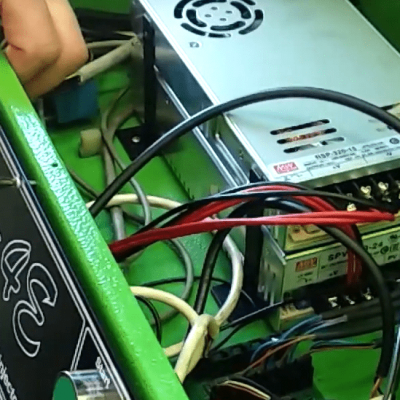

Installing power supplies (including software controlled).

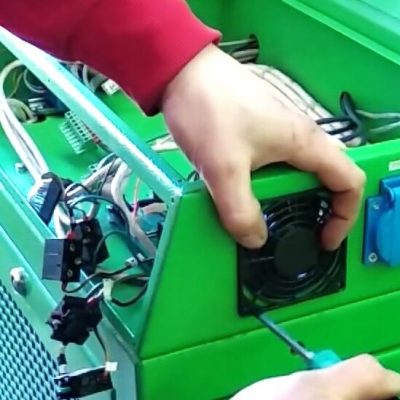

Installation of an additional fan. Only two connectors (green) -the connections of the injectors and the connection of power supply units need to be redone into connectors of another type. The connections of the injectors and of the power supply units need to be redone of another type.
All other connectors are absolutely compatible with the old version.
What are the main benefits for you?
1
Low investment
2
Modernisation without problems with the previous stand.
3
Attracting new customers, retaining existing ones.
4
Unlimited testing and coding
5
Test benches from any manufacturer
6
Online technical support
7
High-precision electronic measurements
8
For Common Rail Injectors 4 channel.
9
Creation of user test plans
The possibility of modernising your stand?
To find out whether it is possible to modernise your stand, please write to us. In your letter please specify the stand model, year of manufacture, contact details. We will send you a work plan, cost and approximate terms
