UIS-CAM - OS.40-001

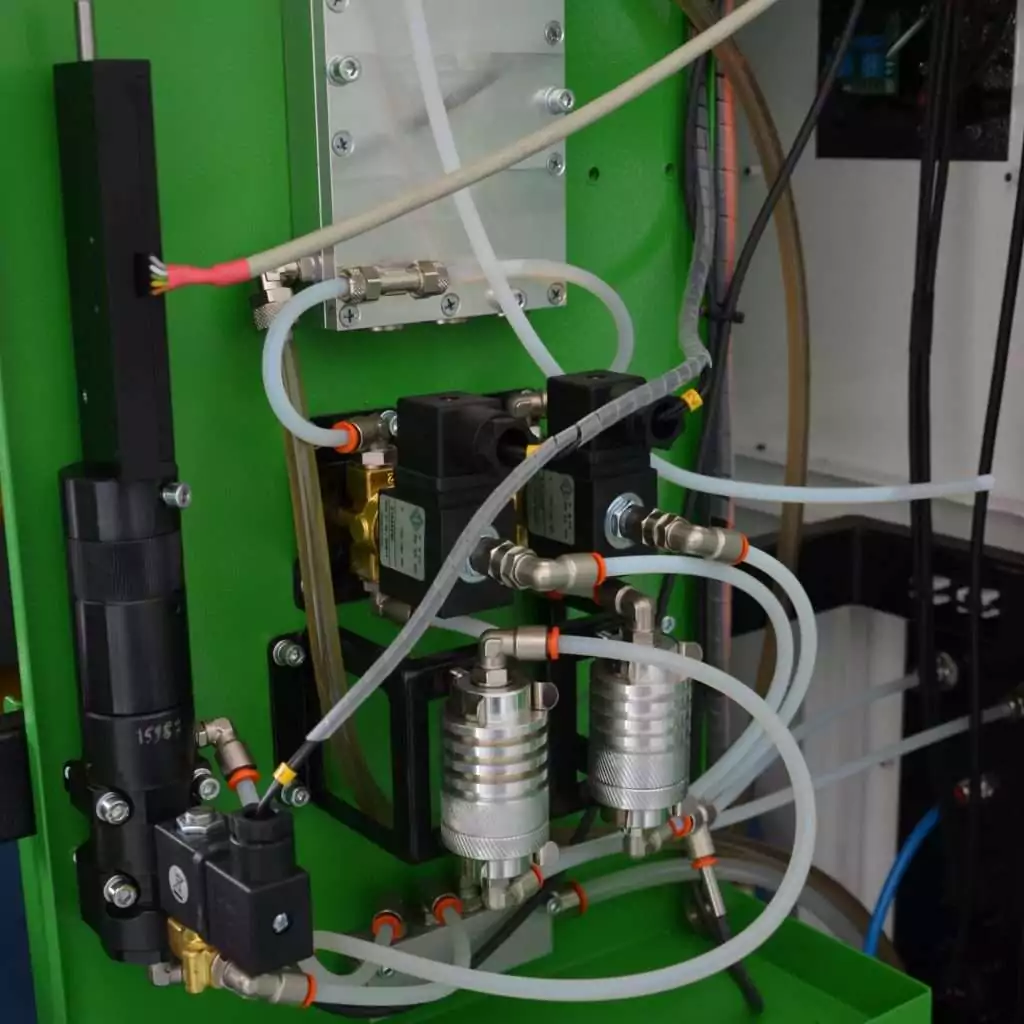

UIS-CAM is a test bench for testing and coding of electronically controlled EUI unit injectors and EUP unit pump sections.
The diagnostic tester is suitable for the fuel system of all low- and medium-power diesel engines, including high-speed passenger car engines, engines of buses, trucks and agricultural machinery. The test bench can be used to test the UIS (unit injection system) and UPS (unit pump system) components.
All measurements are carried out electronically.

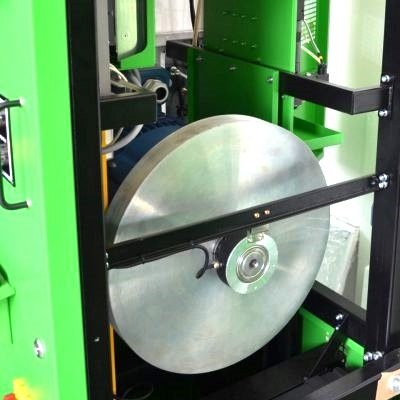

The Cam Box is designed to provide accurate test results. Thanks to the variable stroke height, all injector units can be tested.
Test Bench for Unit Injectors, Pump Injectors, UIS CAM
Subscribe to our channel and give us a like! To not miss updates, to see examples of our equipment and operating instructions.
Buy a UIS-CAM diesel injection pump test stand as a reliable option!
UIS CAM test stand- Technology for pros.
The UIS CAM test bench is designed for testing and coding of unit injectors as well as pump sections used in complex fuel injection systems. The UIS CAM system is significantly more complex than Common Rail and requires deep technical knowledge. Successful testing and repair depend on several factors, including precise hydraulic settings, accurate injection angle calibration, and proper control of each testing stage. An understanding of all cycles and how the UIS CAM system works is key to achieving precision results. It is important to remember: a test stand is a tool, but not a replacement of a qualified expert. Only detailed knowledge of the system and a professional approach will provide a satisfactory repair. However, it’s important to note that the test stand is a tool, not a substitute for expert knowledge and skills.

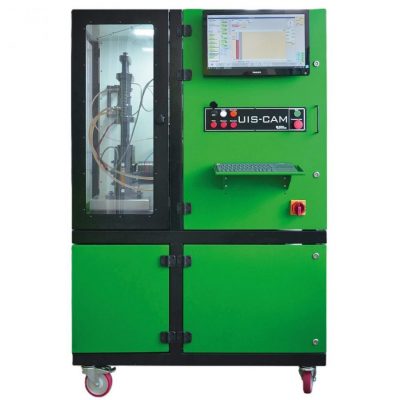

UIS-CAM diesel injection pump test stand from Open System is a modern and universal diesel injector testing equipment, which can be used for such treatments as diagnostics, testing, coding of EUI diesel injector pumps as well as electronically controlled EUP sections. The third version was developed considering the customers’ wishes, becoming an effective tool for car services, vehicle service stations and repair shops that maintain cars, trucks, agricultural machinery and perform repairs of diesel pump injectors and maintenance of fuel injection pumps. A unique feature of the UIS-CAM is its sophisticated design and ease-of-use. To start testing, the operator just needs to set the appropriate cam and start the program. Electronic measurements ensure precision results, and the user-friendly interface reduces training time.

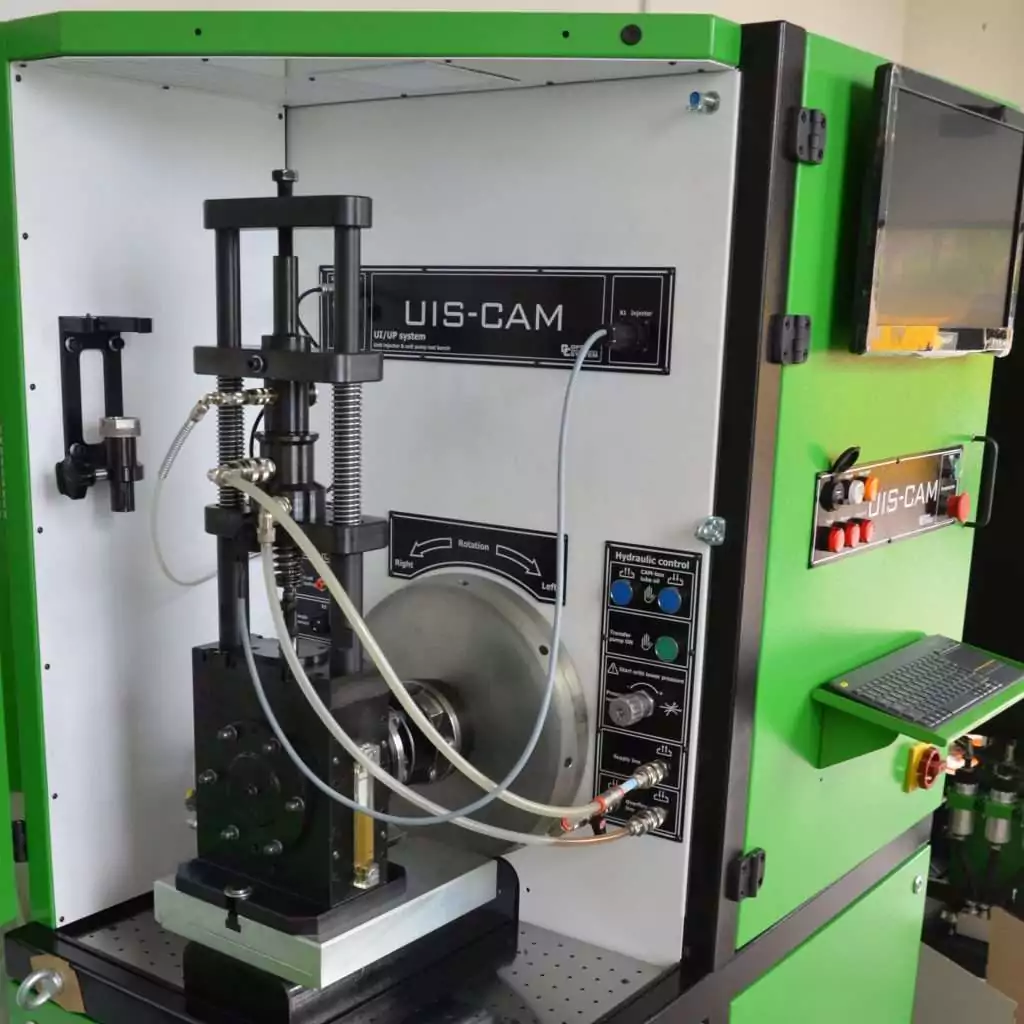

The UIS-CAM diesel test stand and its centerpiece, the CAM BOX.

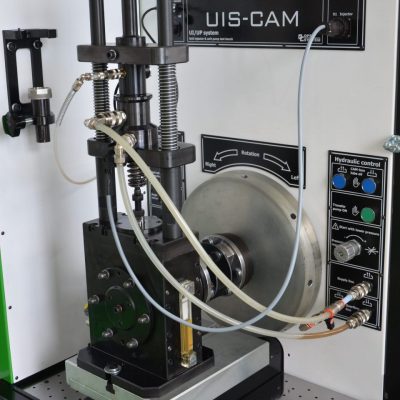

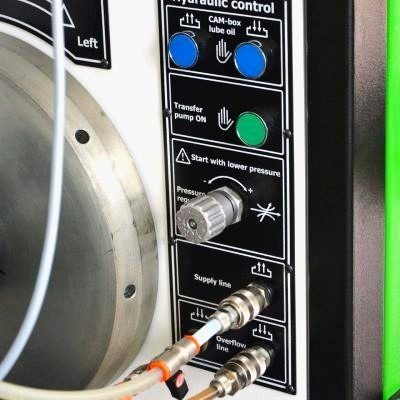

The UIS-CAM injector test stand is equipped with the advanced CAM BOX, a special component developed by Open System for the most exact pump injector testing and pump sections diagnostics. The CAM BOX is designed to be modular: the cam can be replaced directly on the stand in just 2 minutes. In addition, to provide convenience for the diesel operator’s master, the stand has a semi-automatic function at the time of the cam changing. In just 10 seconds you can drain and refill the diesel nozzles check fluid by pressing just one button. These improvements not only reduce the time for diesel fuel pump testing, but also increase the accuracy of the test.
Testing of various diesel pump injectors and high measurement accuracy
The UIS-CAM fuel injector testing stand supports a wide range of diesel engines, including nozzle pumps such as DELPHY, DAF105, SMART injector and E1, E3 category injectors. CAM-BOX can be equipped with adapters for different types of cars — both сcompact and large vehicles, which makes it essential for those who work with a big variety of equipment. Thanks to the unique technology of the injector coding using strain gauges and washer selection, UIS-CAM provides a high level of diagnostic precision while the pump nozzle testing. This stand makes it possible to service high-speed and medium power diesel engines for such vehicles as cars, buses and trucks.
Characteristics and performance of UIS-CAM

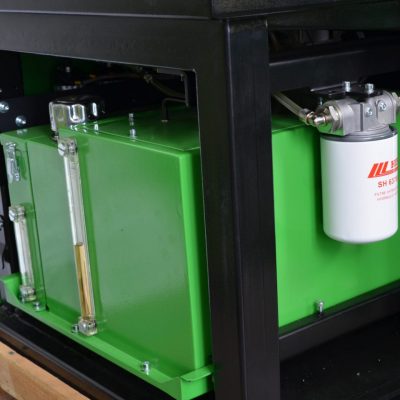

Highlighted among the key characteristics of UIS-CAM is its performance and capacity. It is equipped with a drive engine of 7.5kW (10 hp), which allows it to reach speeds from 100 to 2500 revolutions per minute. The accuracy and reliability of test results for diesel nozzles is achieved by the speed stability of 1 rev/min. The measurement range of the unit is from 0.01 to 400 mm 3/injection, with a measurement accuracy of 1-1.5%, making it suitable for performing high-precision tests. The nozzle checking machine is powered by a 3×400/230V AC power supply and has containers for testing and contaminated liquid, making it durable and convenient to use.
The UIS-CAM diesel test rig’s price and its benefits
The demand for diesel injection systems has increased, and acquiring UIS-CAM from Open system-WEST is an investment in dependable diesel test equipment that offers precise diagnosis and repair of pump nozzles. The performance, durability, and versatility of UIS-CAM stands make the cost justifiable. It will be an important tool for improving the quality of service and productivity at any maintenance station.
Investing in a UIS-CAM fuel injector testing stand will provide you with reliable and multifunctional equipment that will allow your service center to provide services such as diesel fuel system diagnostics and repairs at the highest level!
