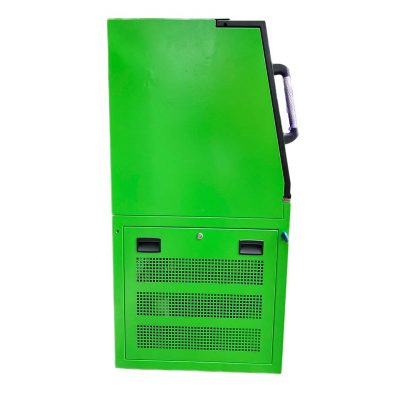

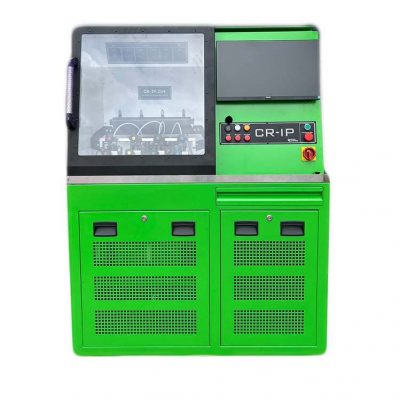

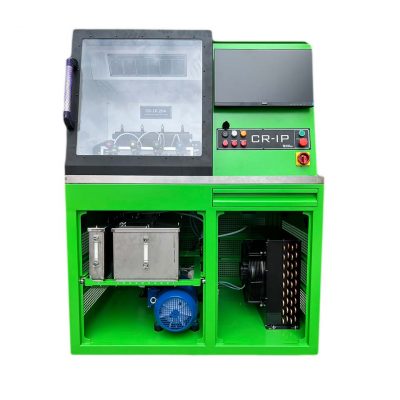

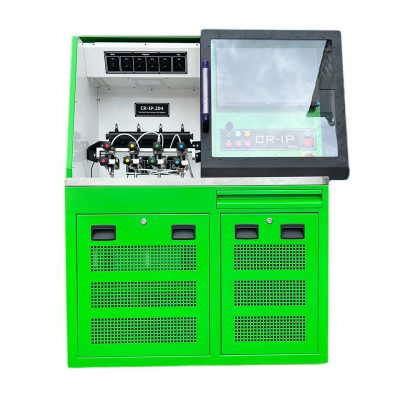

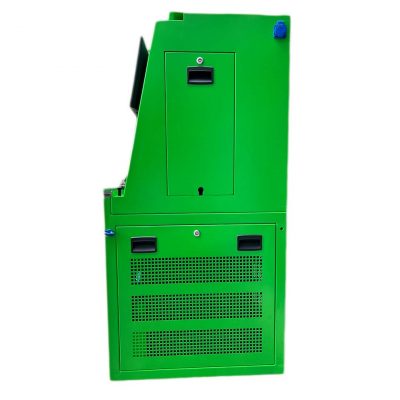

CR-IP.4E - OS.39-002
The CR-IP test bench is designed for testing and coding of Common Rail injectors manufactured by Bosch, Delphi, Denso and Siemens at system pressure up to 2400 bar. Measurements are made in the electronic measuring system. By electronically measuring each single injection (not the average value), high accuracy is achieved when measuring even very small pre-injection volumes.
The package includes ARMD software with test plans.
The program allows you to carry out testing and coding both automatically and manually, using standard or custom (self-created) test plans.

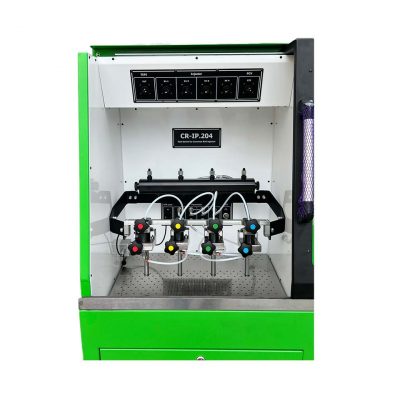

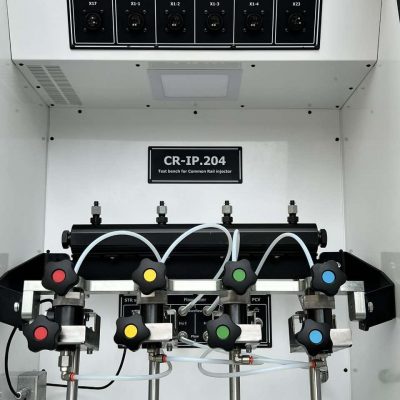

The CR-IP test bench allows you to simultaneously test 4 injectors in same time and determine the temperature of the test fluid at each injector.
The CR-IP bench uses the CR4-Tester device, designed to supply user-programmable control signals to Common Rail injectors to test their operation (spray pattern and intensity, volumetric output).
The design of the CR-IP stand and its equipment meet the requirements of international standards for static and dynamic parameters — ISO 4008/1 and ISO 4008/2.
The software and hardware complex «ARM Diesel» allows:
— to create the configuration (sensors, actuators) of the test bench pump;
— set the number of cycles;
— set engine speed;
— control the values of temperature, pressure, discrete (contact) sensors;
— electronic limb function;
— monitor the injection angle of the high-pressure fuel pump;
— control of diesel tester devices VE, PE;
— control the temperature of the test liquid.
Test bench CR-IP from Open System for testing and coding of common rail injectors
Subscribe to our channel and give us a like! To not miss updates, to see examples of our equipment and operating instructions.
Buy a Stand for Repairing Common Rail CR-IP Injectors-Key Advantages
For 27 years, «Open System» has been successfully developing and manufacturing equipment for diagnosing and repairing diesel fuel systems, including equipment for testing Common Rail systems. Out of these nearly 30 years, we have devoted 25 years to creating a high-quality product that helps our clients maintain the efficiency and reliability of diesel engines. One of our latest achievements is the CR-IP test stand for testing fuel injectors, which we are proud to introduce.
Three Years of Development for High Precision
The CR-IP test stand for diesel injectors is a state-of-the-art machine for testing Common Rail diesel injectors, developed through three years of intensive research and development by our team. Its primary function is the coding and testing of Bosch, Siemens, Denso, and other injectors. Special attention has been paid to maximizing measurement accuracy, achieved through the latest technologies and years of development on the measurement module. Unlike many counterparts, our diesel injector test stand does not use standard test tubes but is equipped with a specialized measurement system, making it unique.
High-Quality Electronics

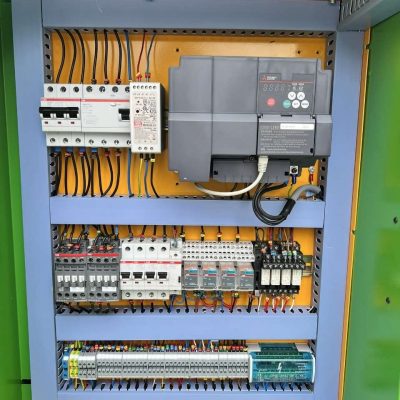

The CR-IP injector test stand includes all components, including electronics, built to the latest standards. We use products from reputable manufacturers, such as German brands ABB and Japan’s Mitsubishi, ensuring high reliability and durability. As a result, we confidently supply our diesel injector test stand worldwide, allowing our clients to rely on its stability and functionality.
Ease of Use

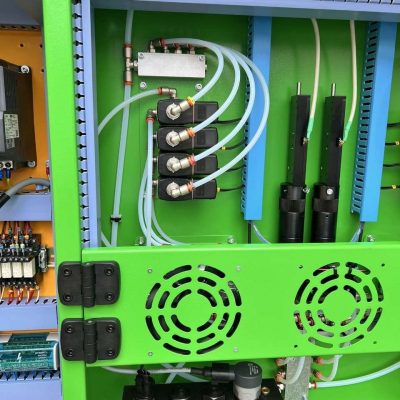

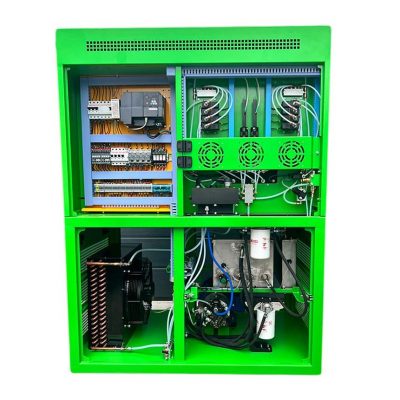

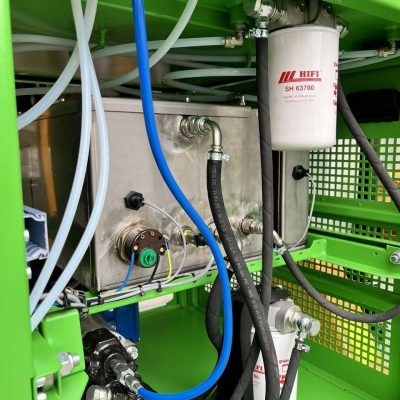

An important feature of the CRDI-CR-IP injector test stand is its ergonomic design. The lower part of the stand is equipped with a fully functional cooling unit for the working fluid and a filtration system, which maintains fluid cleanliness and improves diesel injector testing efficiency. The electronic and control modules are neatly arranged within the body, providing easy access and convenience for operators.
Attention to Detail
The Common Rail diesel system test stand encompasses all our years of experience in programming and engineering. Each functional element, from diesel injector coding to testing, is carefully designed and optimized for the convenience of diesel mechanics. We are confident that this stand will become an essential tool for automotive service centers and garages that work with both light and heavy-duty vehicles. It is a product of not only our knowledge and technology but also our passion for the industry.
Conclusion
The CR-IP diesel test stand will be in demand at both small auto service centers and large repair centers. Combining advanced technology, high manufacturing quality, and thoughtful functionality, it is the ideal solution for diesel injector repairs.
