CRI-FM OS.39-087
Modernize Your Diesel Test Bench with CRI-FM

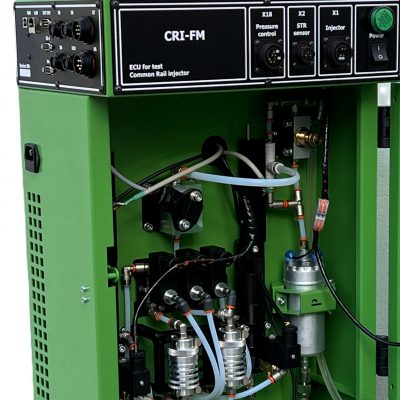

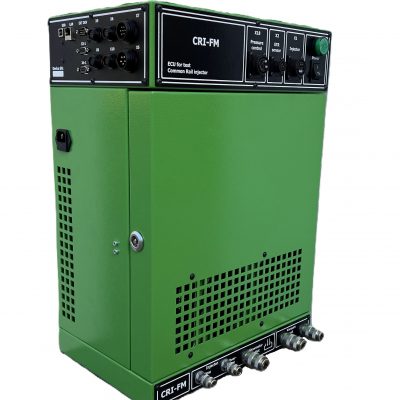

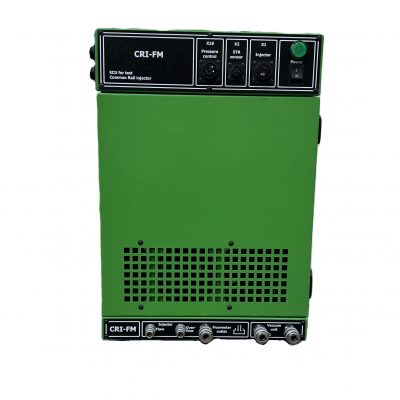

The CRI-FM is a compact and powerful upgrade solution for diesel test benches, designed for the precise diagnosis of Common Rail injectors. This device is specifically developed for testing single injectors and delivers the highest measurement accuracy in a durable and space-saving design.
Compatibility: On which test benches can CRI-FM be installed?
The CRI-FM can be installed on any diesel test bench equipped with the appropriate hydraulic and cooling system. It is particularly suited for:
1. Classic test benches with measuring glasses (e.g., Bosch, Rabotti…)
- These test benches, which use measuring glasses to determine injection quantity, are ideal candidates for modernization.
- Integrating electronic measurement and injector coding functionality allows for an affordable upgrade, increasing profitability and reducing financial burdens for new businesses.
2. Test benches from authorized manufacturers (e.g., Bosch, Carbon Zapp, Hartridge)
- These diesel injector test benches often require licensing fees or additional costs for injector coding.
- With CRI-FM, diesel injectors from various manufacturers (Bosch, Siemens, Denso, Delphi, etc.) can be tested, repaired, and coded without recurring payments!
3. Low-cost test benches from Asia
- Many budget-friendly Common Rail injector test benches from Asia suffer from poor measurement accuracy and limited software functionality.
- The CRI-FM compensates for these deficiencies, bringing test quality up to the standards of leading European diagnostic equipment.
Technical Highlights:
- Single injector testing – designed for the precise testing of one injector at a time.
- High-precision measurement system – accurately measures injection and return flow volumes.
- Fast real-time visualization – measurement data is displayed as a live graph on the screen.
- Universal connection options – includes cable sets with connectors and adapters for different injectors.
- Integrated response time sensor – includes an injection chamber with a piezo sensor and signal amplifier.
Compact & Robust Design:
- Dimensions: 41 × 30 × 55 cm.
- Weight: approx. 36 kg.
- Flexible installation: Easily mounted on the test bench or wall.
ARM Diesel-Software Included:
- No license fees – unlimited use of all features.
- Over 6000 test plans – with options to customize and create new test plans.
- Precise injector control – generates control signals with predefined parameters.
- Correction code generation – supports Bosch, Siemens, Delphi, and Denso injectors.
- Free software updates – for the first two years after purchase.
Once the hardware is installed, our specialists will set up the system online – easy, fast, and professional!
